Description

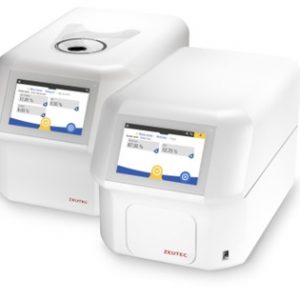

ZEUTEC presents a new generation of the SpectraAlyzer GRAIN – the SpectraAlyzer GRAIN NEO with new features, state-of-the-art design, better performance and with the aim of bringing a new perspective to grain testing.

The SpectraAlyzer GRAIN NEO is built to provide Grain quality assessment and assurance to farmers, traders and processors.

• Design: NIR Monochromator
• Spectral range: 570-1100 nm(Optional 400-1100 nm)
• Verification of wavelength: Automatically during start-up
• Optical bandwidth: 4 nm
• No of datapoints: >3000
• Sample presentation: Automatic
• Optical path length: Automatically adjusted, range 6 – 36 mm
• Measuring time: 45 s, 200 – 300 g sample(refilling possibility)
• DisplayScreen: 1″, TFT 1280×800 pixel
• User Interface: PCAP Glass Touch, multi-language GUI
• Software: Integrated, stand-alone operation, fail-safe
• Software / database storage: SD card, 16 GB
• Interfaces: 1x front USB, 3x back USB, 2x RS232, Ethernet
• Printer: Printer as optional accessory
• Input voltage / rated current 100-240 V, 50/60 Hz(wide range power supply 150 W)1.7A,(optional Car Adapter 12V,10A)
• Protection: IP50 (dust and humidity)
• Dimensions: Height: 393 mm / Width: 570 mm / Depth: 458 mm
• Weight: 25 kg

APPLICATIONS:

1.      Wheat: Moisture, protein, ash, gluten, starch, hardness, hectolitre weight.
2.      Barley: Moisture, protein, ash, starch, hectolitre weight
3.      Oats: Moisture, protein, ash, fiber, carbohydrates
4.     Corn: Moisture, protein, starch, fat/oil
5.     Rye: Moisture, protein, oil, carbohydrates
6.     Canola: Moisture, protein, oil
7.      Mustard: Moisture, protein, oil, carbohydrates
8.     Groundnut: Moisture, protein, ash, oil, fatty acid
9.     Soybean: Moisture, protein, ash, oil, carbohydrates
10.  Paddy: Moisture, protein, ash, starch, fiber, amylose
