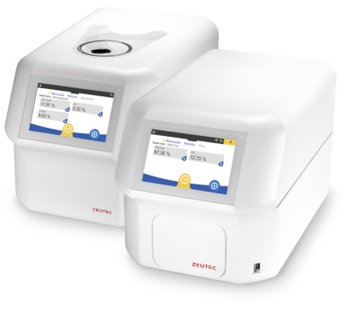

SpectraAlyzer FOOD
The SpectraAlyzer FOOD is the ideal solution for routine food analysis of major quality parameters during food production.
Designed as a modular system, the SpectraAlyzer FOOD analysis solution presents the quantitative analytical results of major quality parameters (e.g. moisture, protein, fat, sugars, starch, acidity, salt, ash) and many others within 45 seconds.
Description
The SpectraAlyzer FOOD is the ideal solution for routine food analysis of major quality parameters during food production.
Designed as a modular system, the SpectraAlyzer FOOD analysis solution presents the quantitative analytical results of major quality parameters (e.g. moisture, protein, fat, sugars, starch, acidity, salt, ash) and many others within 45 seconds.
| For food products | |
| Spectral range | 800-2500 nm (optional 400 to 800nm with colour module) |
| Optical bandwidth | < 6 nm |
| Dual beam system, Sample / Reference measurement | |
| High signal to noise ratio | > 150.000:1 |
| Large expandable internal memory for calibrations, methods and history results | |
| Auto-diagnostics | |
| Graphical user interface, projected capacitive glass touch panel | |
Accessories
| Standard calibrations | Included |
| Keyboard | As optional accessory |
| Barcode reader | As optional accessory |
| Printer | Thermal ticket or office type printer as optional accessory |
| WiFi | Wireless LAN as optional accessory |
| AWX | Application worx, chemometric software package |
Specifications
| Screen | TFT 800 x 480 pixel |
| Power requirements | min. 90 V AC (50 – 60 Hz), max. 260 V AC (50 – 60 Hz), 220VA |
| Operating temperature | 5 °C – 40 °C non-condensing |
| Interfaces | 1 x front USB 2.0, 3 x USB 2.0, 2 x RS232, Ethernet, Audio out |
| Dimensions | Height: 310 mm / Width: 300 mm / Depth: 480 mm |
| Weight | 17 kg |
