Description

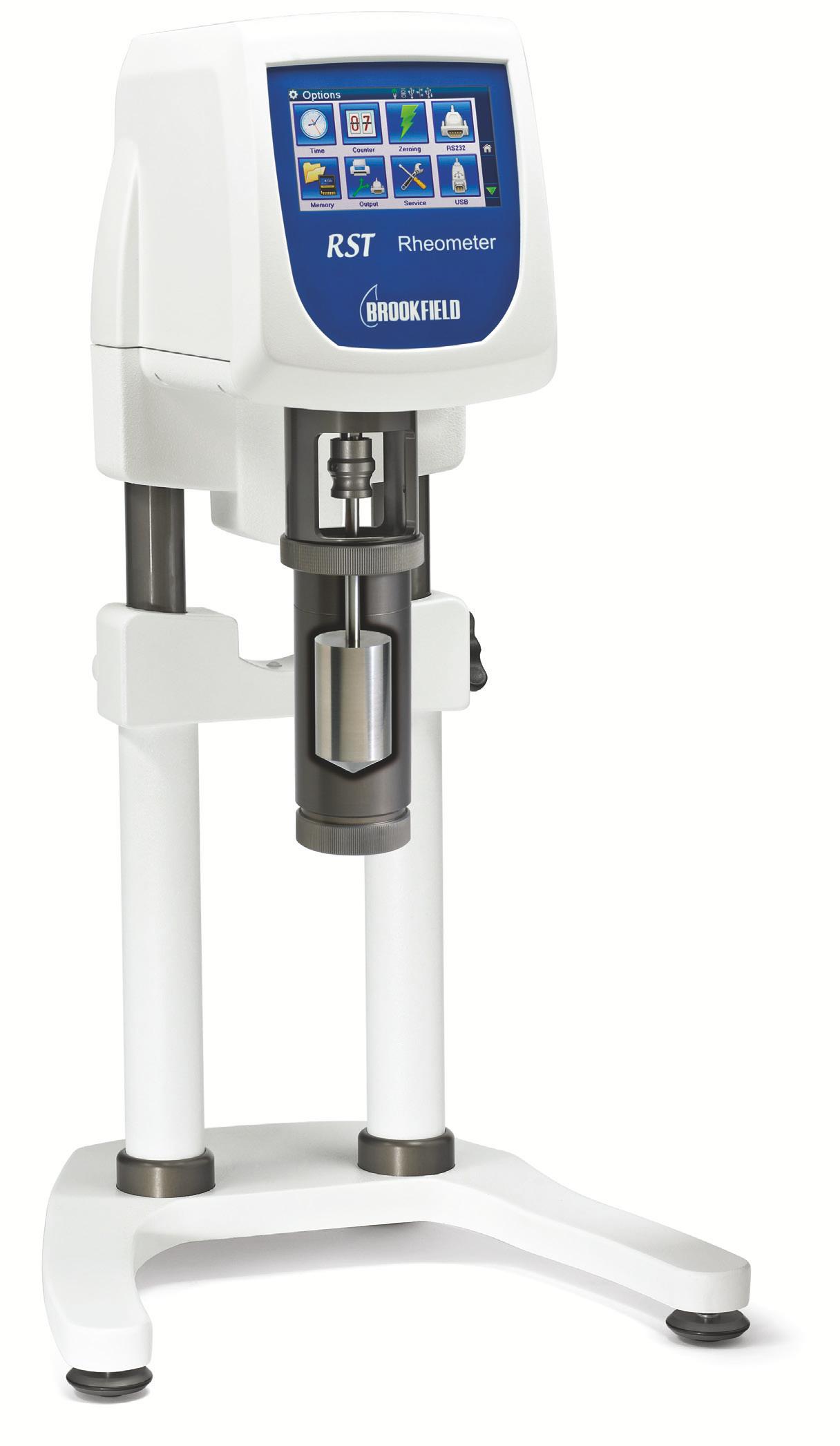

RST Coaxial Cylinder Rheometer

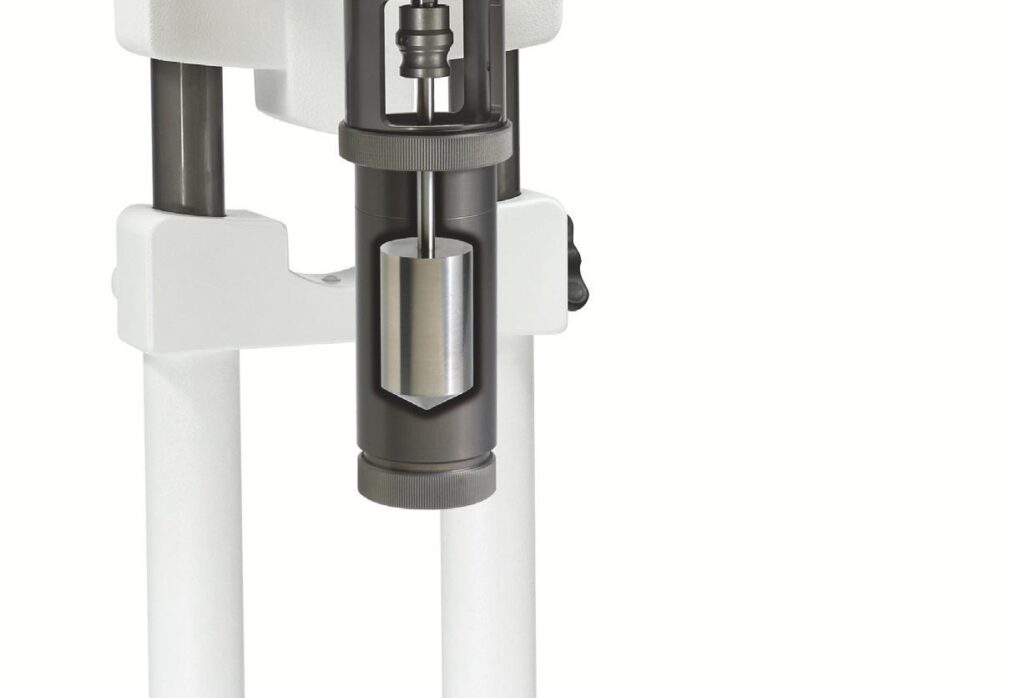

Coaxial Cylinder DIN Geometries for single point QC or full rheological profiling

Spindle Barcode
for auto spindle recognition
Controlled shear
stress/shear rate
operation makes it easy to study material behavior from initial yield to flow curve response
Optional Rheo3000
Software
allows for PC control and data acquisition/analysis of multiple test files
Quick Connect Coupling
for easy bob (spindle) attachment
Rugged Design
permits use on production floor
Small sample size
facilitates rapid temperature control during testing
Temperature Control
from -20°C to 180°C
Choice of
– Direct immersion in bath
– External circulation using the FTKY3 Water Jacket

Optional Accessories

• Choice of Coaxial Cylinder
• Bob (spindle) and Chamber
  at least one bob and chamber is required (p47)
• FTKY3 Water Jacket for Temperature Control
• Rheo3000 Software (p29)
• Viscosity Standards (p53)
• Cone/Plate Accessory (p27)
• KE Cooling Device
  (required for temperatures over 70°C)
• PT-E Immersion Temperature Sensor
  Disposable Chambers
