Penetrometer
Penetrometer
ASTM D 5 – D 217 – D 937 – D 1321 – D 1403 – EN 1426
NPN Tech – Automated – Ref 942734

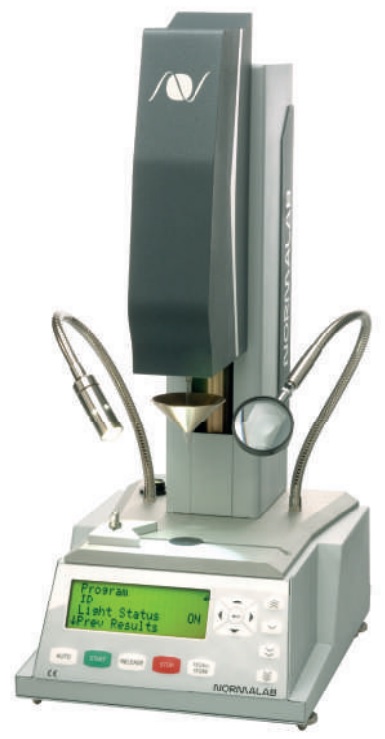

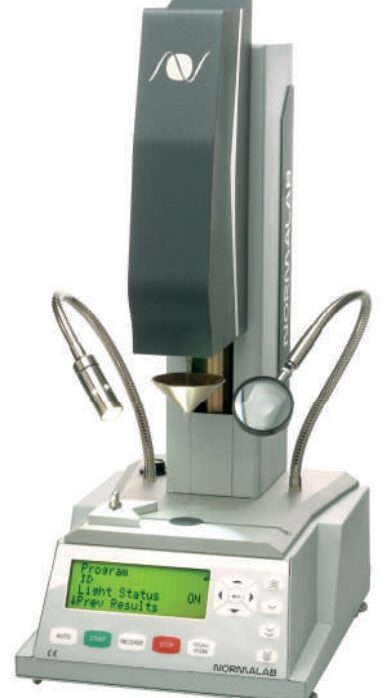

Automatic penetrometer, the NPN Tech is a compact unit. The device is
able to measure automatically the penetration value of the sample.
With an auto-electronic detection of depth penetration (optional accessories), the NPN Tech is used for consistency and resistance determination
of pasty, creamy, semi-solid or highly viscous samples.
Description
Unique Specifications :
Step by step motorized vertical displacements
4 programmable reference positions for the holder assembly
Adjustable led lamp and magnifying glass
Stepper motor for penetration depth as low as 0.01 mm
Automatic zero-position adjustment of the system
Penetration time between 0 and 999 min 59 sec
Optoelectronic detection of depth penetration
Easy Operation :
The software allows programming and calibration. The data acquisition
can easily be done with a ticket printer or with PC connection in PDF files.
For routine analysis, you can set 4 programmable reference positions.
Penetration time can be adjusted between 0 & 999 min.
We can supply you with a wide range of accessories and dedicated tools.
The NPN Tech allows to connect different shaped test body for penetration test depending on the sample:
Cone
Needle
Micro-cone
Other on request.
