FAST Viscometer
FAST Viscometer

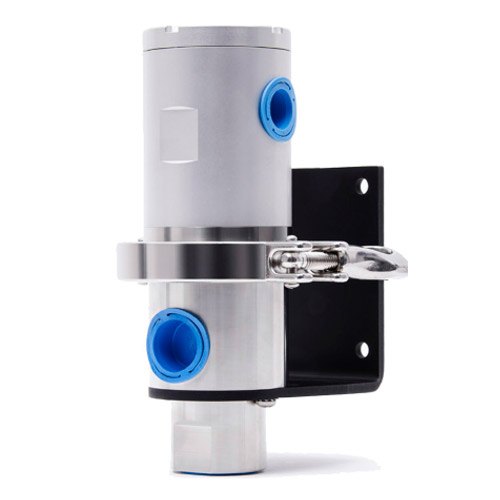

The AMETEK Brookfield FAST system has a rugged design with non-moving parts. It has been designed to perform day after day under the extreme demands in printing, coating and adhesive operations – with no maintenance. Utilizing a high frequency, micro-rotational core, which is unaffected by press vibration, this worry-free system can measure and control the viscosity of your inks, coatings and adhesives from start to finish…allowing the operators to handle other press concerns.
Description
The AMETEK Brookfield FAST system has a rugged design with non-moving parts. It has been designed to perform day after day under the extreme demands in printing, coating and adhesive operations – with no maintenance. Utilizing a high frequency, micro-rotational core, which is unaffected by press vibration, this worry-free system can measure and control the viscosity of your inks, coatings and adhesives from start to finish…allowing the operators to handle other press concerns.
FEATURES & BENEFITS
- Unique-micro rotational sensor
- No moving parts, no maintenance
- Unaffected by external vibration
- Flexible vertical or horizontal installation
- True temperature readings to 120°C
- Maintains correct color throughout the process
- Compact: only 8.5 inches tall
- Worldwide support
FAST/MXTS SENSOR SPECIFICATIONS
| Measurement Type: | Torsionally oscillating probe |
| Measurement Range: | 1 to 3,000 (optional 12,000) cSt using an NIST traceable, Newtonian fluid measured at 25°C |
| Process Connections: | ¾” standard, (1, 2½” tri-clamp or 3A design, optional) |
| Repeatability: | ±1.0% of reading |
| Wetted Surfaces: | 316L stainless steel |
| Sensor O-Ring: | Isolast for probe Viton for chamber housing (EDPM or Kalrez®, optional) |
| Temperature (Fluid): | -4°F to 248°F(-20°C to 120°C) |
| Pressure Range: | Vacuum to 200 psig max. |
FMXTS TRANSMITTER SPECIFICATIONS
| Viscosity Range (cSt): (field selectable) |
0 to 10, 0 to 50, 0 to 100, 0 to 250, 0 to 500, 0 to 1000, 0 to 1500, 0 to 2000, 0 to 12500 |
| Analog Output (2): | 4-20 mA (non-isolated) CH1 = viscosity CH2 = temperature |
| Serial Port (2): | Port 1 = RS232, simple, read only Port 2 = ½ Duplex RS485, Modbus RTU driver |
| Electronics Packaging: | Wall mount, NEMA-4 (IP65), 8” x 8” x 6”(203 x 203 x 152mm) 32°F to 104°F(0°C to 40°C) |
| Interconnecting Cable: | 25 ft (7.6m) standard Optional: 50 ft (15.2m), 75 ft (22.8m) and 100 ft (30.4m) |
| Supply Voltage: | 18-30VDC or 115VAC/60 Hz or 230VAC/50 Hz (±10% max), power draw <1 amp |
Specifications subject to change without notice.
OPTIONS
- Explosion-proof (NEM7 & ATEX)
- 3A approved food grade
- Flange mount & immersion probe versions available
- Solutions tailored for ink, coating & packaging applications
