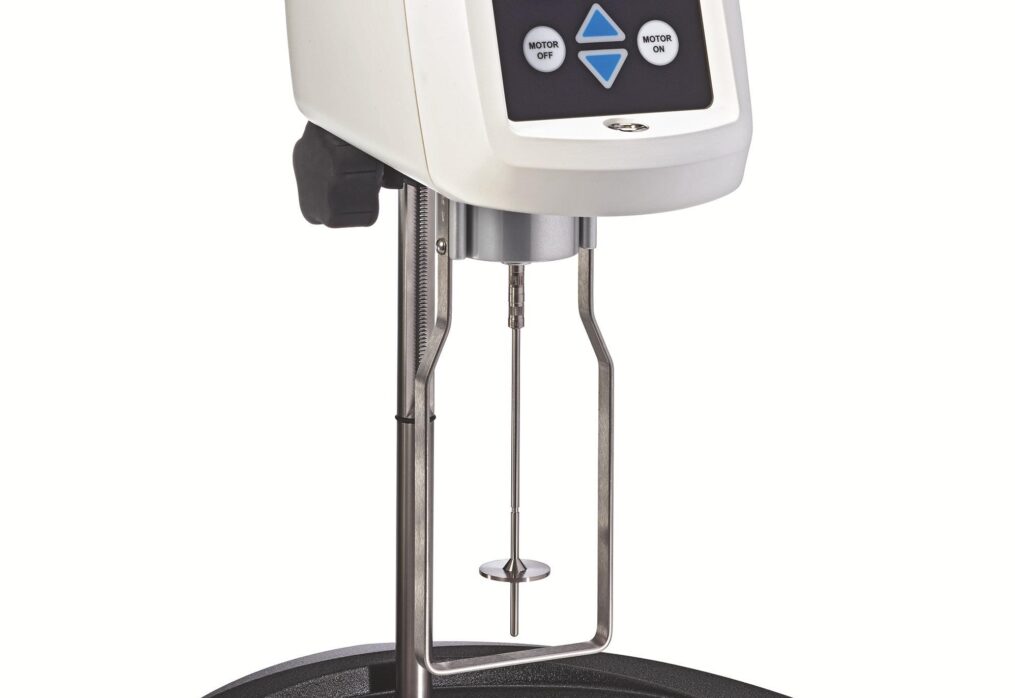

DV1 Digital Viscometer
Brookfield Digital Viscometer DV1 M
Brookfield Digital Viscometer DV1 M low cost continuous sensing Digital Viscometer now with timed measurement functionA continuous sensing capability for rapid viscosity measurement makes this economical digital viscometer a standout. Measures viscosity and temperature simultaneously (with an optional temperature probe). With its timed measurement function, data can easily be sent to a PC or printer. Optional software allows the DV-I Prime to collect, analyze and record test data.
Description
The only viscometer in its class to offer continuous sensing and data display at such a low price!
User Configuration Display
– User choice of most
important parameter is
displayed in larger font size
– Choice of static or scrolling
Display mode
Displayed Info:
– Viscosity (cP, P, mPa•s, Pa•s)
– % Torque
– Speed/Spindle
– Temperature (°C or °F)
if RTD Temperature Probe is
purchased
Choice of Multiple Languages
English, French, German,
Portuguese, Russian, Spanish
USB PC interface
for use with optional Wingather SQ
Software
18 speeds
provide great range capability
Optional RTD Temperature
Probe DVP-94Y
Direct access
to time measurement
function (time to
torque, time
to temperature,
time to stop)
Accuracy:
±1.0% of range
Repeatability: ±0.2%
Temperature off-set
capability to ±5°C
Automatic Range Calculation:
– Full Scale Range (FSR) at 100%
– Maximum viscosity measured
with Spindle/Speed combination
Printing to Dymo® Printer Capability
Stylish Model G Base
Optional Accessories:
Wingather SQ Software E
RTD Temperature Probe
Ball Bearing Suspension (RV/HA/HB)
EZ-Lock Spindle Coupling System
Viscosity Standards
Protective Keypad Covers
Dymo Printer
RV/HA/HB-1 Spindle
Quick Action Lab Stand
Temperature Bath
Small Sample Adapter
UL Adapter
Thermosel
Helipath Stand with T-bar Spindles
Spiral Adapter
DIN Adapter
Quick Connect/Extension Links
Vane Spindles
